The “Economy plus“ version extends the existing PROFIBUS Bus Coupler series BK3xx0. The K-bus extension technology allows the connection of up to 255 spatially distributed Bus Terminals to one Bus Coupler. The BK3120 has been designed to accommodate automation requirements. The PROFIBUS protocols omit FMS operation in order to be able to transfer more user data in DP mode, which for this Bus Coupler type can be 128 byte inputs and 128 byte outputs. The BK3120 incorporates the PROFIBUS DP V1 services. These services allow direct access to the Bus Coupler register and the complex Bus Terminals in order, for example, to change the parameterisation or to set/correct limit values for analog Bus Terminals.
The “Economy plus“ version extends the existing PROFIBUS Bus Coupler series BK3xx0. The K-bus extension technology allows the connection of up to 255 spatially distributed Bus Terminals to one Bus Coupler. The BK3110 has been designed to accommodate automation requirements. The PROFIBUS protocols omit FMS operation in order to be able to transfer more user data in DP mode, which for this Bus Coupler type can be 128 byte inputs and 128 byte outputs. The BK3110 incorporates the PROFIBUS DP V1 services. These services allow direct access to the Bus Coupler register and the complex Bus Terminals in order, for example, to change the parameterisation or to set/correct limit values for analog Bus Terminals.
The KL2114 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. The load current output of the KL2114 is protected against overload and short-circuit. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes.
The KL9010 bus end terminal is necessary for data exchange between the Bus Coupler and the Bus Terminals. Each assembly must be terminated at the right hand end with a KL9010 bus end terminal. The bus end terminal does not have any other function or connection facility
The KL2114 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. The load current output of the KL2114 is protected against overload and short-circuit. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes.
Principales
Gamme de produits

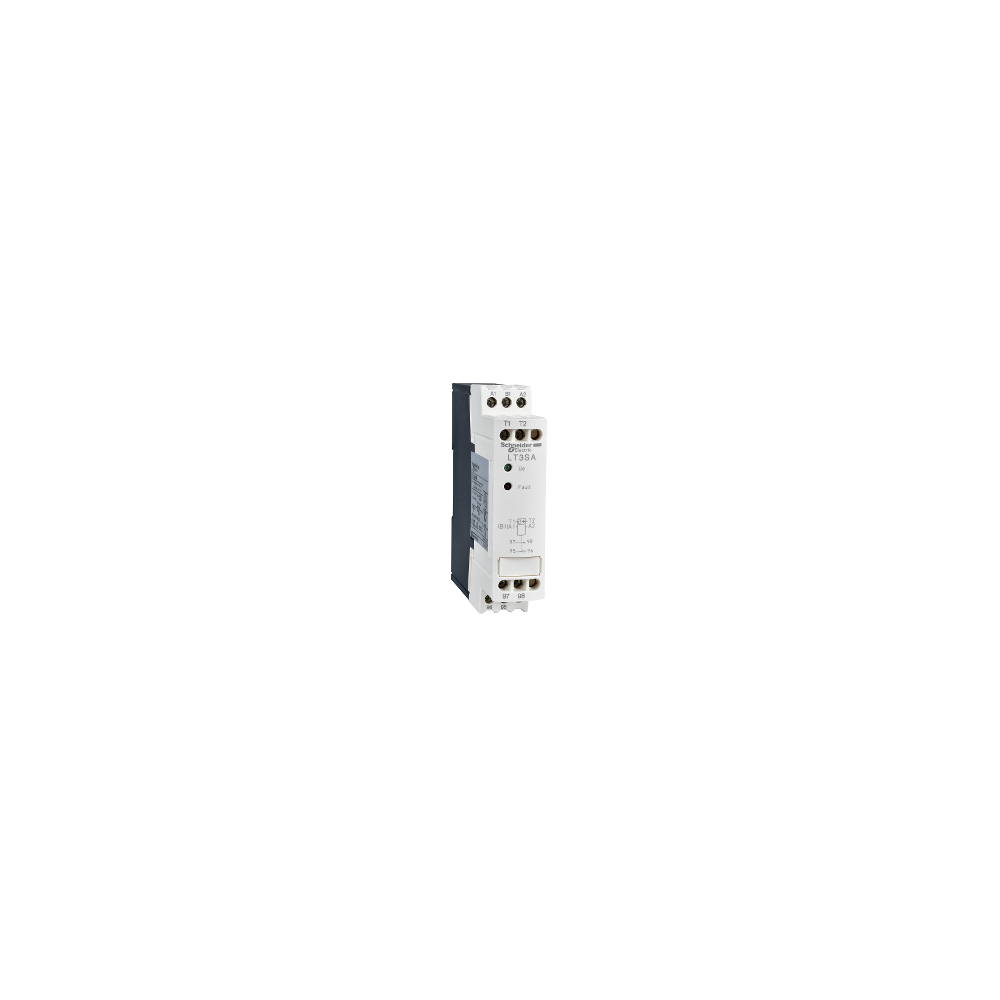

LT3
Nom de l'appareil
LT3SA
Fonction produit
Unités de protection à thermistance
24...230 V CA 50/60 Hz. 24...230 V CC
Remise à zéro
Remise à zéro automatique
DELTA PLC DVP60ES00R2 100-240VAC 36DI 24DO Relay Output: DVP-ES series
Le microcontrôleur avancé de commande de mouvement de la série PM peut devenir un module d'extension de contrôle de mouvement pour un autre MPU de la série PM , il est très flexible dans toutes sortes d'applications.

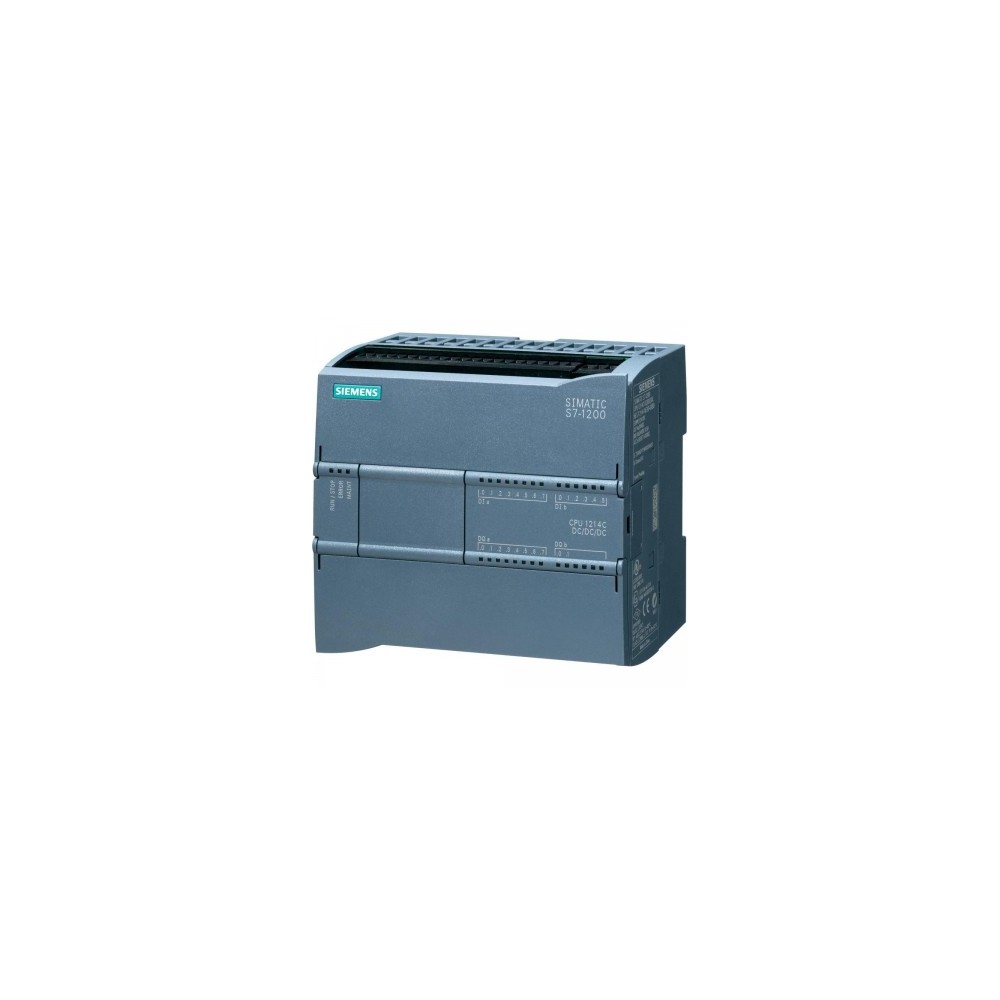

simatic s7-1200, cpu 1214c, cpu compact, dc/dc/dc e/s embarquees: 14 etor 24v cc;10 stor 24 v cc; 2 ea 0 - 10v cc, alimentation: cc 20,4 - 28,8 v cc, memoire progr./donnees 100 ko
